    Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature


    Rotary Pneumatic Air Clamping Down Cylinder Free Oiling Double Acting Cylinder


    1.This machine with MC clamp is exclusively to mass-produce spare parts.It is a big helper to raise production efficiency.
    2.The clamping arm of this clamp will swing around the angle when the piston traveling down,and then keep straight on until the clamping arm clamps the work-piece tightly.
    3.You had better install a flow control valve to adjust the acting speed,and don't clamp the workpiece when the clamp is running,Otherwise will be easy to damage the body and the spare parts.
    4.The material of the cylinder body is made of aluminum metal alloy, the surface is processed with the hard membrane and the inside of it is smooth.Long life-span
    5.Double acting


    Product Specifications

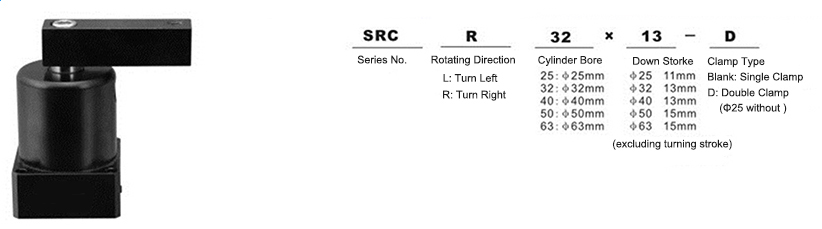

    Bore Size(mm)2532405063
    ActionDouble Acting
    Working FluidAir
    Working Pressure1.5~9.5kgf/cm2
    Working Temperature0~60℃
    Working Speed30~500mm/sec
    Port SizeM5 x 0.8
    Turning Stroke111315
    Down Stroke111315
    Rotating Angle90°(accept to customise 0°,45°,60°)
    Rotating DirectionL: Left(from right to left) R: Right(from left to right)
    CushionRubber gasket buffer
    LubricationFree oiling
