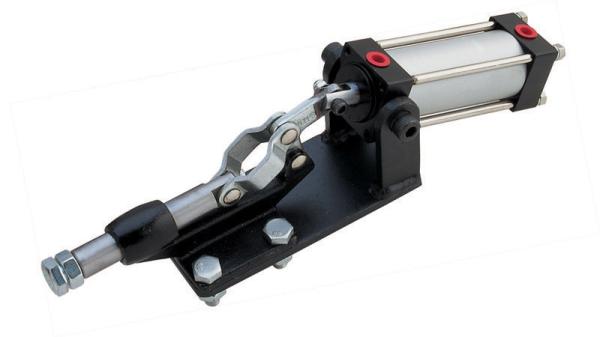

386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm

    Buy cheap 386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm from wholesalers

    Buy cheap 386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm from wholesalers
    • Buy cheap 386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm from wholesalers

    386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : 305EA
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,PayPal
    Supply Ability : 2000pcs per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    386kgs Pneumatic Toggle Clamp 305EA / Pneumatic Lever Clamp Stroke 23.6mm


    Air Powered Toggle Clamp 305EA Holding Force 386kgs Stroke 23.6mm Machinery Manufacture Fixture


    Product Specification and features:


    Structure:air cylinder and toggle clamp

    Weight:1540g

    Plunger Stroke:23.6mm

    Port Size:G1/8''

    Bore of cylinder:30cm

    Cylinder area:12.56cm2

    Max air pressure :10kg/cm2

    Max Holding Capacity:386kgs


    The 15.6 mm diameter plunger travels forward 254mm
    form and open to a closed and positive locked position even
    if air pressure fails. Plunger accepts any M10P=1.5 spindle
    or to receive your customized fixture.
