Air Powered Swing Clamp Machining Center Fixture Aluminium Alloy Cylinder Surface Black Oxide Finish

Features:

1. When the air cylinder is actuated, the clamping arm will rotate to the design angle during the piston downward stroke, and then continue to clamp down along the straight line until the clamping arm clamps the workpiece.
2. When using the air powered swing cylinder, please install the flow control valve to avoid the speed too fast, and do not clamp the workpiece during the swing stroke to avoid damage to the cylinder and internal parts.
3. When the the length of clamping arm needs to be increased , please do not exceed 1.5 times the original length.
4.The cylinder material is made of aluminum alloy, and the surface is treated with black oxide finish . The inner wall surface is smooth and the service life is long.

Specifications:

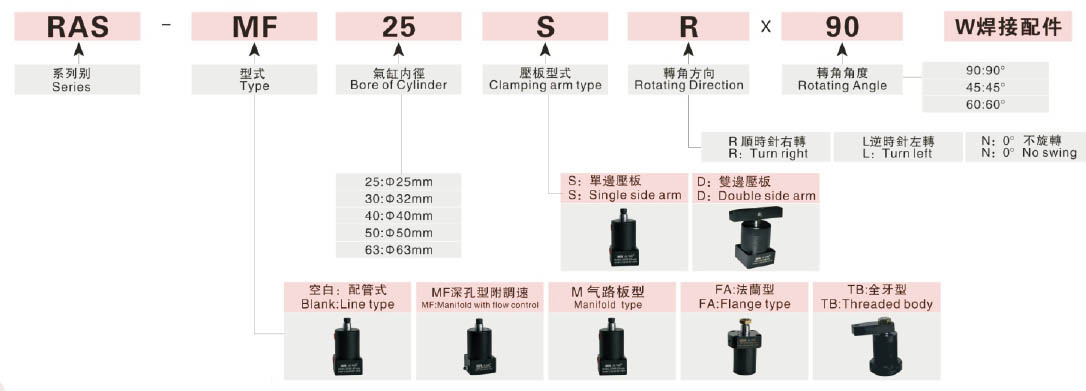

Ordering Code:

The swing clamp cylinder is a clamp driven by air pressure or hydraulic pressure. It is suitable for special machines and fixtures for mass production parts. It can greatly improve the automation degree of tooling fixtures such as machining, assembly and welding.

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
