Double Clamping Arm Air Rotary Clamp Casting Engine Cylinder Cover Processing Clamping Fixture

Product Features

1.The product is ideal for mass production on a special purpose machine and jig on machining
center. It will greatly upgrade production efficiency.
2.When the air cylinder actuate, and the piston moves downward, the clamping arm will swing to
a rated angle! Then it lowers until the workpiece is clamped securely.
3.To avoid too fast motion a flow control valve is suggested to connect to the air inlet ports (A, B)
on the swing clamp cylinder. Do not clamp workpiece while the clamp is swinging to avoid
damaging on the cylinder barrel and internal parts.
4.When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the
ariginal length.
5.The cylinder body is manufactured from aluminum alloy. Surface is hard membrane treated for
maximum smoothness on inside surface and long service life.

Specifications

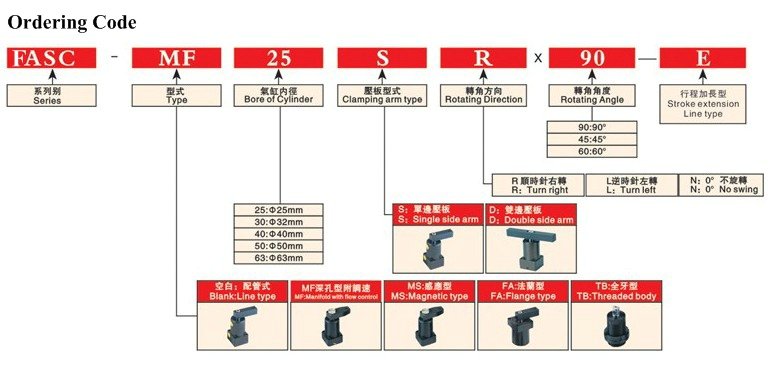

Ordering Code

ASC--MF 25 S R * 90 – E

① ② ③ ④ ⑤ ⑥ ⑦

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
