    Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : SKR20
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,PayPal
    Supply Ability : 1000 pcs per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty


    Aluminum Alloy Swing Clamp Piston Air Cylinders ISO Certified Fixture


    Features:


    1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

    2.This product has long stroke and short stroke
    3.Mounting by four screws
    4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
    5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length

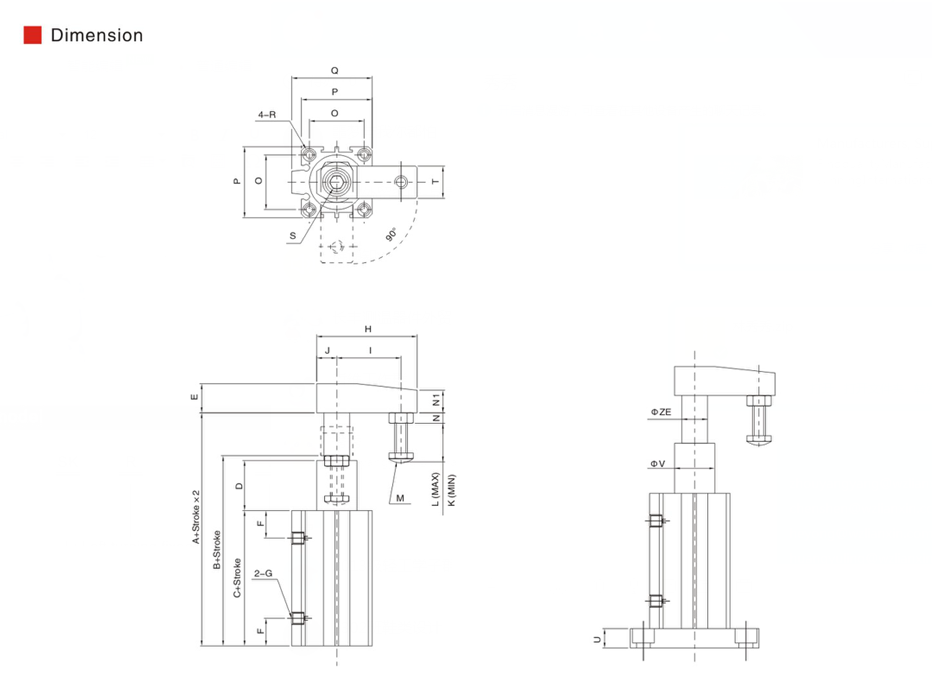

    Bore Size(mm)ABCDEFGHIJKLM
    Φ2092.382.359.520.315.57.5M5x0.851359412M6×1.0×25 Hexagon bolts
    Φ2593.683.661.22015.58M5x0.851359412M6×1.0×25 Hexagon boltslts
    Φ3211398643118.59PT1/862.54012.55.512.5M8×1.25×40 Hexagon bolts
    Φ40114.899.866.530.318.510PT1/862.54012.55.512.5M8×1.25×40 Hexagon bolts
    Φ50159.9140.978.659.62210.8PT1/4946020832M10×1.5×50 Hexagon bolts
    Φ63162.8143.882.558.62211PT1/8946020832M10×1.5×50 Hexagon bolts

    Bore Size(mm)NN1OPQRSTUVZE
    Φ205122434-HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side)M8x1.2515.981912
    Φ255122840-HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side)M8x1.2515.9102412
    Φ326.514344450HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side)M10x1.519103016
    Φ406.514405258HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side)M10x1.519123016
    Φ50818486271HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side)M12x1.7525.3123920
    Φ63818607584.5HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side)M12x1.7525.3125020
