    Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : LHC01
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 450 sets per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature


    Stable Performance Link Clamp Cylinder Machining Center Fixture Surface Chrome-plated for Corrosion Resistance


    FEATURES

    1.Five available bore diameter :Φ25,Φ32 ,Φ40,Φ50,Φ63.
    2.Use high-quality seal to avoid leakage and keep long operation
    3.Lever principle design is applied on this hydraulic cylinder. Clamping work piece easily and improve efficiency.
    4.The material of the cylinder body and the piston is 45# steel, heat treatment,chrome plated.

    Max. operating pressure: 70 kgf/cm2

    Min. operating pressure: 20 kgf/cm2

    Double acting


    NOTE

    A flow control valve is recommeded.

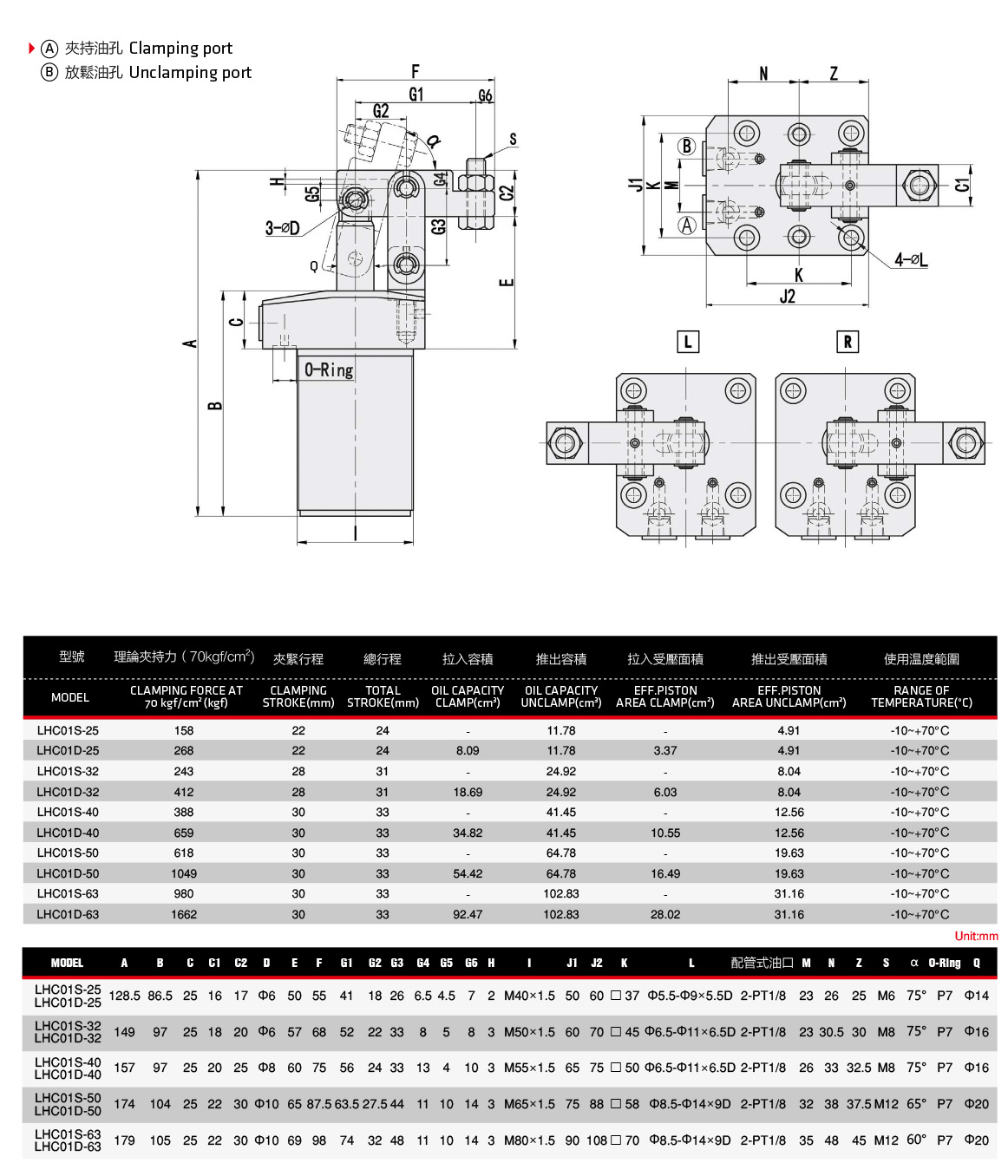

    ORDERING INDICATION LHC01 – D – 40 C R A W


    LHC01

    Series

    LHC01

    D

    Acting type

    D: Double acting

    S: Single acting

    40

    Bore of cylinder

    Φ25 , Φ32 , Φ40 , Φ50 , Φ63

    C

    C:

    Manifold with flow control

    R

    Lever arm direction

    R, L, Blank

    A

    integrated cylinder body
