    Hydraulic Link Clamp Cylinder Strong Structure Machining Center Jig Pascal Type

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : RCLU
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

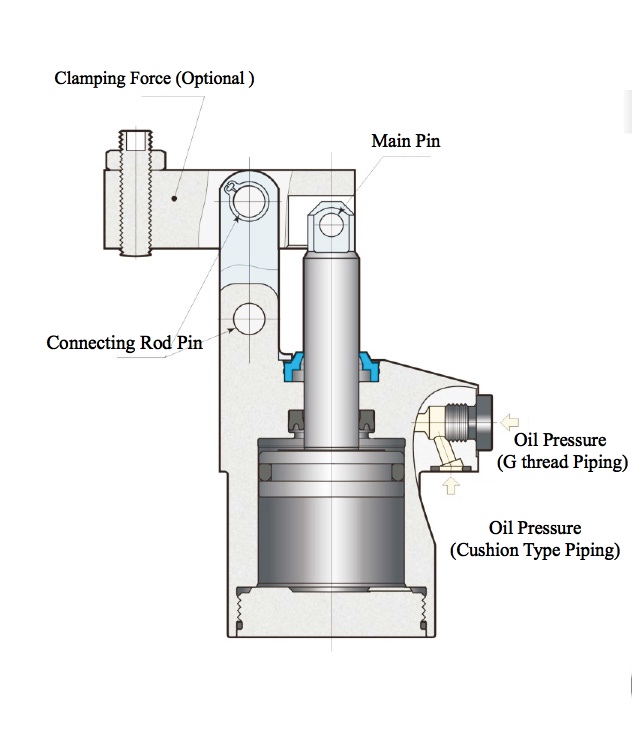

    Hydraulic Link Clamp Cylinder Strong Structure Machining Center Jig Pascal Type


    Competitive Price Hydraulic Link Clamp Cylinder Compact Size Strong Structure Lever Clamp Cylinder Machining Center Jig


    Feature:

    1.Compact Size , powerful function and attractive price

    2.Forged body

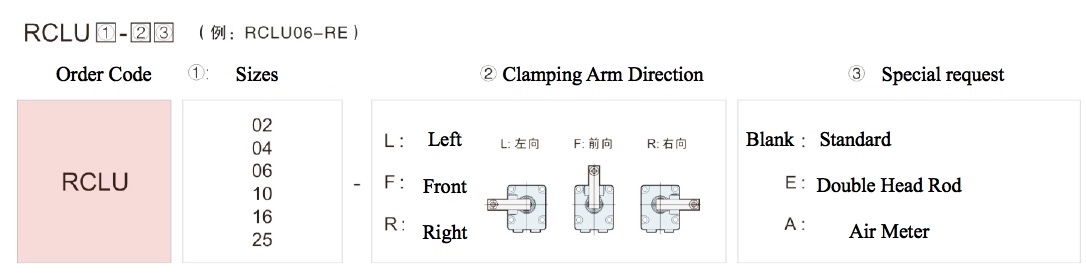

    3.three clamping arm directions

    4.Special dust-proof design

    ModelRCLU02RCLU04RCLU 06RCLU 10RCLU 16RCLU 25
    Cylinder Force (Under oil pressure 7Mpa) (kN)3.45.06.710.617.226.9
    Clamping Force (kN)2.63.54.47.312.118.2
    Clamping arm Length (mm)36.5425056.569.587.5
    Bore of cylinder (mm)253035445670
    Dia. of Piston Rod (mm)1214141622.428
    Piston Area Clamping (cm2)4.97.19.615.224.638.5
    Total stroke (mm)20.523.52629.53645
    Clamping stroke (mm)17.520.52326.53342
    Stroke Clear333333
    Max Flow Rate (L/M)1.01.62.64.79.518.9
    Cylinder CapacityClamp (cm3)10.016.725.044.888.6173.3
    Unclamp (cm3)7.713.021.038.974.5145.5
    Weight (kg)0.71.01.42.34.07.4
