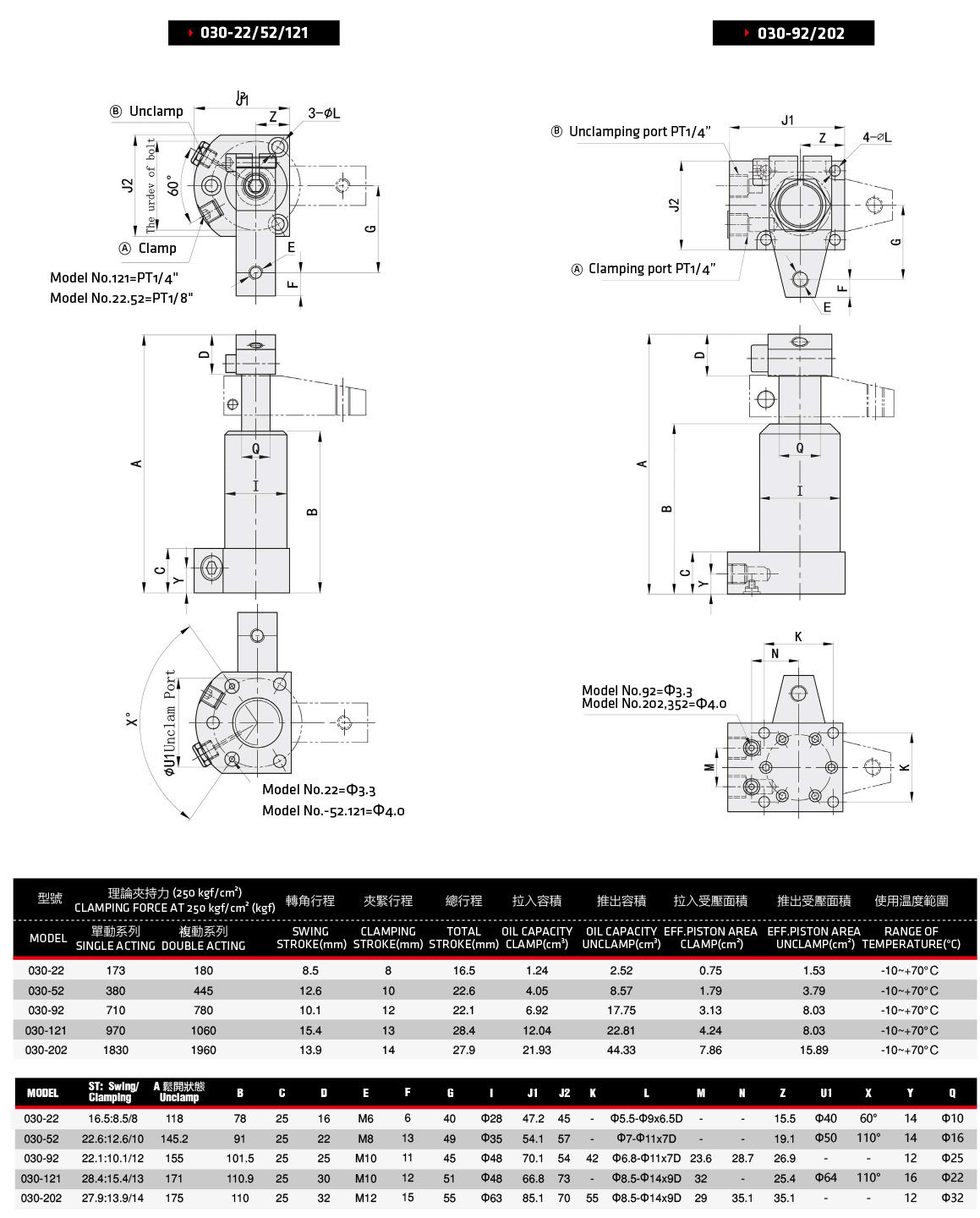

High Pressure Hydraulic Swing Clamp 030 Series Bottom Flange Mounting Thick and Big Workpiece Clamp
FEATURES:
1. Mounting by bolts and holes on the bottom flange.
2.It is available for you to clamp thick workpiece because the
cylinder body is above the fixture plate.
3. Feature of the doubling acting type:Oil circuits control clamping and unclamping, you can control the
clamping and unclamping by direction value.
4. Feature of the single acting type: The design of the interior system is simple. It can return back
to the original position by spring .
5. The material of the cylinder body is carbon steel and treated by
nicarbing.
The hardness of the outside and inside surface of the cylinder is
high and the cylinder is antiabrasive.
Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 70 kgf/cm2
Single acting and double acting
NOTE:
For customized clamp arm, please don't exceed 1.5 times of the
original length and weight.
ORDERING INDICATION 030 – L D 92×90 – P
030 | Series | 030 |
L | Rotating direction | Turn right R or turn left L |
D | Acting type | S: Single acting D: Double acting |
92 | Type | 22 , 52 , 92 , 121 , 202 |
90 | Rotating angle | Standard angle 90°(±2°) Optional angle 30°(±2°),45°(±2°),60°(±2°) |
P | Precision position | Add locating pin design to improve the repeat precision of rotation angle |
![]() |
