Adjustable stroke Pneumatic Cylinder with Magnet Ring on Piston Strong Structure High Precision Cylinder

Production Specifications:

Bore of Cylinder : Φ32 Φ40 Φ50 Φ63 Φ80 Φ100

Stroke(mm): 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500

Range of temperature(°C ) : -10 ~ +60 °C

Advantage:

Hign quality seal to prevent leakage , durable , high Strength aluminium alloy to prevent deformation,

Application:

Auto manufacture industry, machining center fixture , plastic machine,

automatic fixture

Air Cylinder Operation

Max. operating pressure: 10kgf/cm2

Min. operating pressure: 1 kgf/cm2

DOUBLE ACTING CYLINDERS Type Introduction

1.Double acting-single end rod type (Code: DEB)

2.Double acting-single end rod type(piston with magnet) (Code:DEB...M)

3.Double acting-double end rod type ( Code:DED)

4.Double acting-double end rod type(piston with magnet) (Code:DED...M)

5.Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)
(Code: DEN...N...A ; DEN...N...B)

6.Adjustable stroke cylinder (piston with magnet) (adjustable stroke:A:25mm,B:50mm)
(DEN...M...A ; DEN...M...B)

ORDERING INDICATION

DEN - 50 N 125 B FA-Y S x 2

1 2 3 4 5 6 7 8

1	Series	DEB / DED / DEN
2	Bore of Cylinder	Φ32 ,Φ40 ,Φ50,Φ63 Φ80 , Φ100
3	Magnet	Nil: No magnet ; D: With magnet
4	Stroke	25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 225 , 300 , 350, 400 , 450 , 500
5	Adjustable stroke	A:Adjustable 25mm ; B:Adjustable 50mm C: Adjustable 75mm
6	Accessories
7	Sensor switch
8	Quantity	1:1pcs 2:2pcs

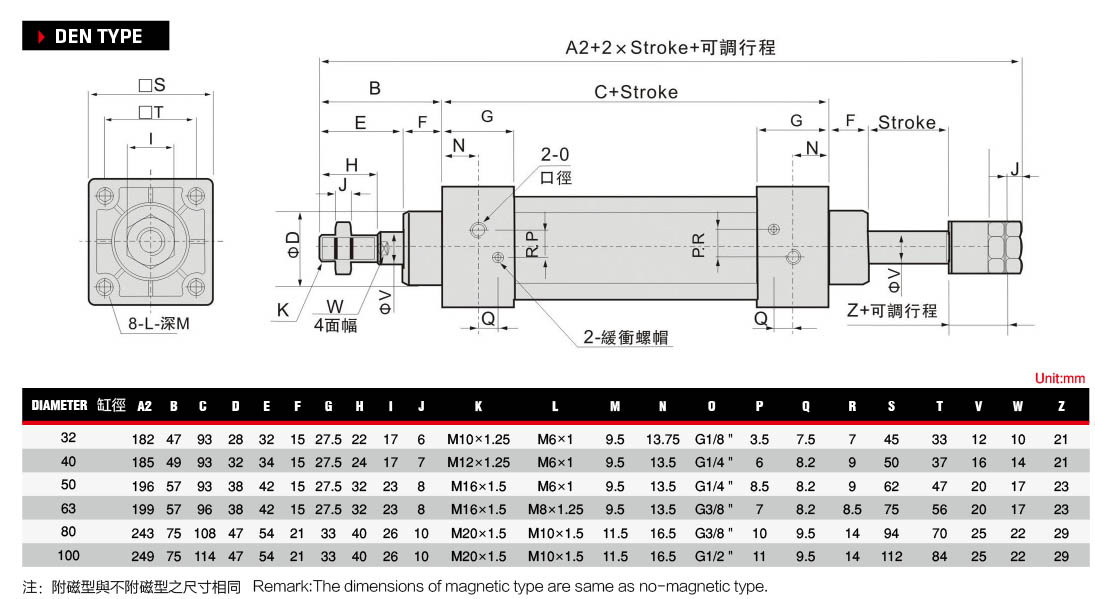

Mounting accessories size

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
