Pneumatic Work Support Cylinder Stable Performance Special for the Thin Workpieces

Prodcut Features:

1.The performance is stable under 4~10kgf/cm2 working conditions and the maximum pressure withstanding is 10kgf/cm2.

2.Depending on the thickness of the workpiece, the piston rod can be replaced.

3.The piston rod has small extension contact force in 0.2-0.6kgf range, so this work support is especially suitable for thin workpiece.

4.Max. operating pressure: 10 kgf/cm2

Mix. operating pressure: 4 kgf/cm2

5. Single acting

6. Type A: Underward Clamping Support. At the initial position, the support head is at the uppermost end under the action of the internal spring. When working, the workpiece is pressed down by gravity of workpiece to make support head synchronously downward. When the workpiece is placed securely, the support head stop going down. After the air pressure is applied, the support cylinder is locked to provide support for the workpiece and stop running.

Type B: Upward Clamping Support. At the initial position, the support head is at the lowermost end. After the workpiece is placed, the support cylinder is pressurized to extend the support head. When the workpiece is touched by the support head, the support head stops immediately and the support cylidner is pressurized to be locked. Then the support head provides support and stops at the current position.

Note:

Don't place eccentric load and overload on support head.

Don't rotate the piston rod during the locking state.

Ordering Code:

1 2 3 4

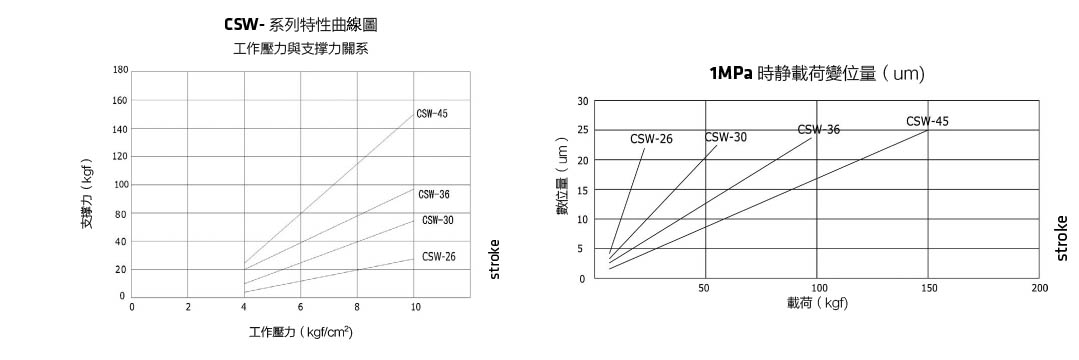

Curve Chart of Opertion Pressure and Support Force

The support cylinder/ work support is a kind of jig components, which is a high technical work actuator. It is generally used on a fixture product that meets the requirements of higher automation. It is mainly used to resist and avoid vibration and deformation of the workpiece against the cutting force during machining and to avoid machining accuracy change of the workpiece. Support cylinder has low-pressure self-locking function. Corrosive materials prevent corrosion of the cylinder by coolant and working environment. Because the support cylinder is mainly used to prevent the deformation of the workpiece during the process, it is called "support cylinder" in the industry.

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
