Threaded Single Acting Hydraulic Cylinder No Oil Leakage Compact Mounting Size Long Pressure Maintaining Time

FEATURES

1.The Thread-body single acting hydraulic cylinder adopts imported oil seal and accessories to guarantee

the quality . No oil leakage while clamping under high pressure for a long time.

2.The volume of this thread-body single acting hydraulic cylinder is small. It can be installed in

limited space on the fixture.

3. The rod end of this hydraulic cylinder extends out by oil pressure and returns back by spring.

4. The angle degree between the cylinder and workpiece could not be larger than 10° while the cylinder is

installed perpendicularly on the work platform.

5. A leakage-proof gasket must be putted under the cylinder

6. Max. operating pressure: 250 kgf/cm2

Min. operating pressure: 20 kgf/cm2

7. Acting Type :Single acting

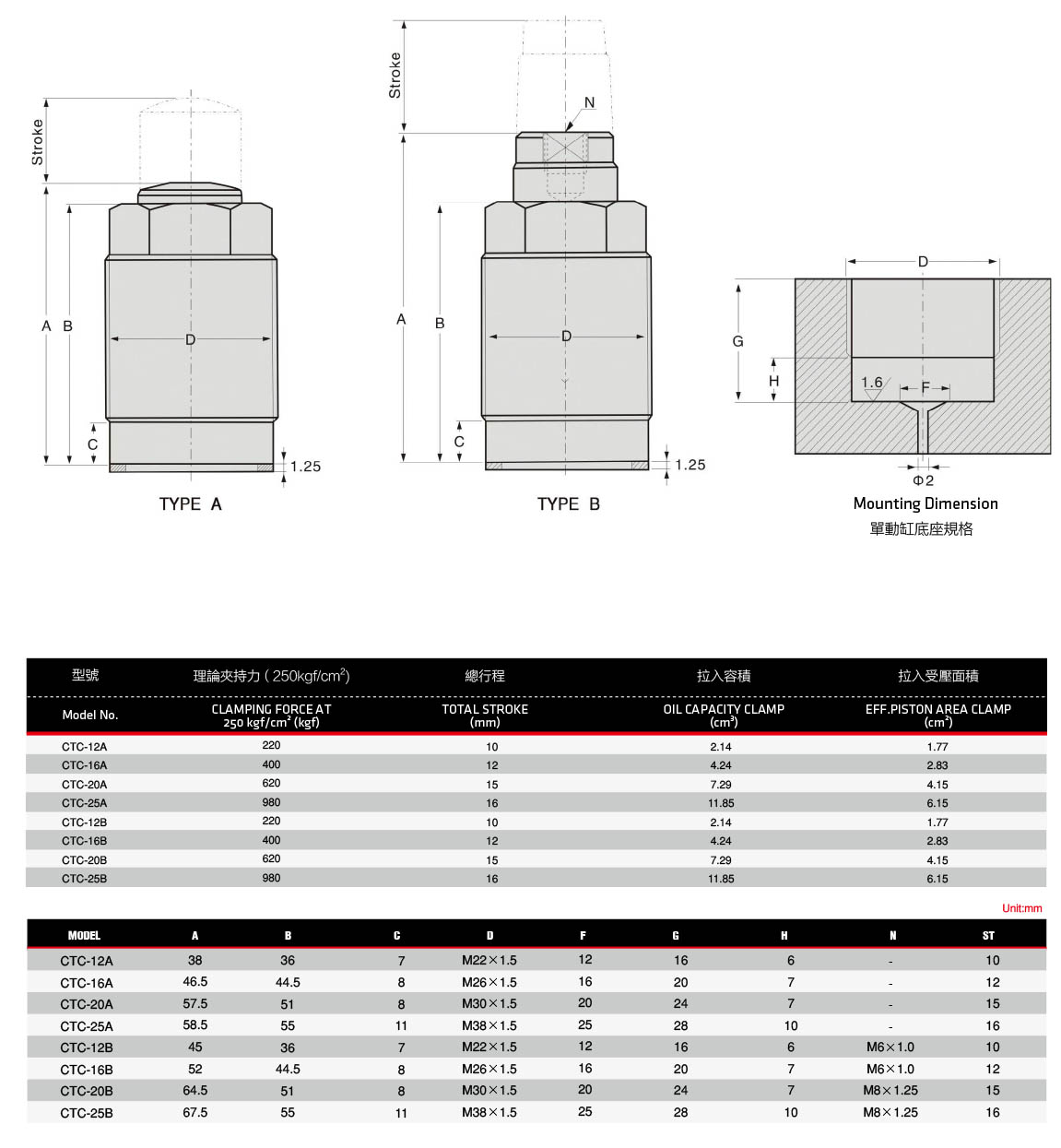

Specifications:

Ordering Code:

CTC-16 A

1 2 3

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
