Vektek Type Pneumatic Swing Clamps Arms Swing 90 Degree Chrome Plating Plungers

Standard Features

1.Arms swing 90°.
2.Our capscrew arm design is available. You may modify our arm, or we have provided you with dimensions to make your own.
3.Special wipers and swept-line cylinder tops help keep chips from packing and coolant contaminants from entering the swing clamp.
4.Swing clamp bodies are wrought aluminum alloy with PHC™ (Pneumatic Hardcoat) coating on all external and internal surfaces.

This gives the clamps extended life.
5.Plungers are carbon steel with hard chrome plating. The guide bushings are hardened alloy steel.
6.All dynamic seals are internally lubricated and made from a specially compounded elastomer to promote smooth break away and low operational drag.

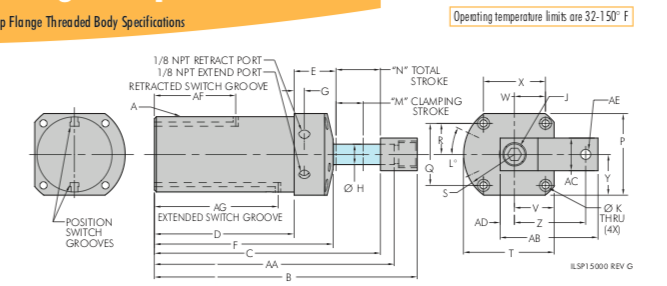

7.Six bore sizes are available in two mounting styles to best adapt to your application.
8.All models are available in straight pull and left or right swings.
9.Magnetic pistons are standard on all models, allowing you to use position indicating sensors.
10.Position sensors mount within the clamp's space envelope so sensor usage doesn't encroach on the clamp's mounting envelope.
Position sensors have an LED indicator to reduce set-up time.
11.All swing clamps have internal orifices to prevent cam damage caused from over accelerating the clamp.
12.To determine whether a straight pull, left or right swing should be specified, imagine viewing the arm from above during the clamping stroke. Arms moving clockwise are right hand swings, counter-clockwise are left hand swings.

       Dongguan Jiazheng Hydraulic Technology Co, LTD is affiliated with Taiwan Jiayan Hydraulic Technology Developing Co., LTD. which has specialized in manufacturing engineering hydraulic cylinders for more than twenty years. In order to explore the China Mainland market to meet the customers' needs with premium services, Taiwan Jiayan has set up her branch company Dongguan Jiazheng Hydraulic Technology Co, LTD in Dongguan City to engage in the research, manufacturing and sales of hydraulic clamps, pneumatic clamps and toggle clamps.

      Based on Taiwan Jiayan Hydraulic Technology's rich experience in manufacturing hydraulic products and excellent research team, Dongguan Jiazheng engages in the manufacturing and research of hydraulic and pneumatic clamps from high starting point and obtains many crucial patents on swing clamps. Jiazheng has built a whole set of scientific, complete and strict management system in the fields of raw material sourcing, production process control and after-sales service. All critical parts are imported from overseas top companies to guarantee the superior performance of the products. Before rolling off the production lines, every product must be tested on the advanced test equipment with enough test duration by strict standards and processes to guarantee the perfect quality.

       The enterprise spirit of Dongguan Jiazheng is sincerity, responsibility, enthusiasm and practicability. Enterprise tenet is that innovation is our priority and quality is life. We provide diverse services and products to customers with professional and profound technology.

       The products of our company are widely used in the industries such as vehicle, airplane, motorcycle and mould manufacturing and have won good reputation from the customers at home and abroad. Products have been sold to USA, Germany, Indian, Russian and the Southeast Asia. Except the regular clamps, Jiazheng can customize the optimized products according to customers' requirements
