High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

    Buy cheap High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms from wholesalers

    Buy cheap High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms from wholesalers
    • Buy cheap High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms from wholesalers

    High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : RBLU
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 360 sets per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms


    High Strength Pneumatic Link Cylinder RBLU Max Force 18.2 Kn Multiple Clamping Arms Machining Tool Jig


    Features:


    1. High Strength and integrated structure

    2. Forged connecting rod supporting part

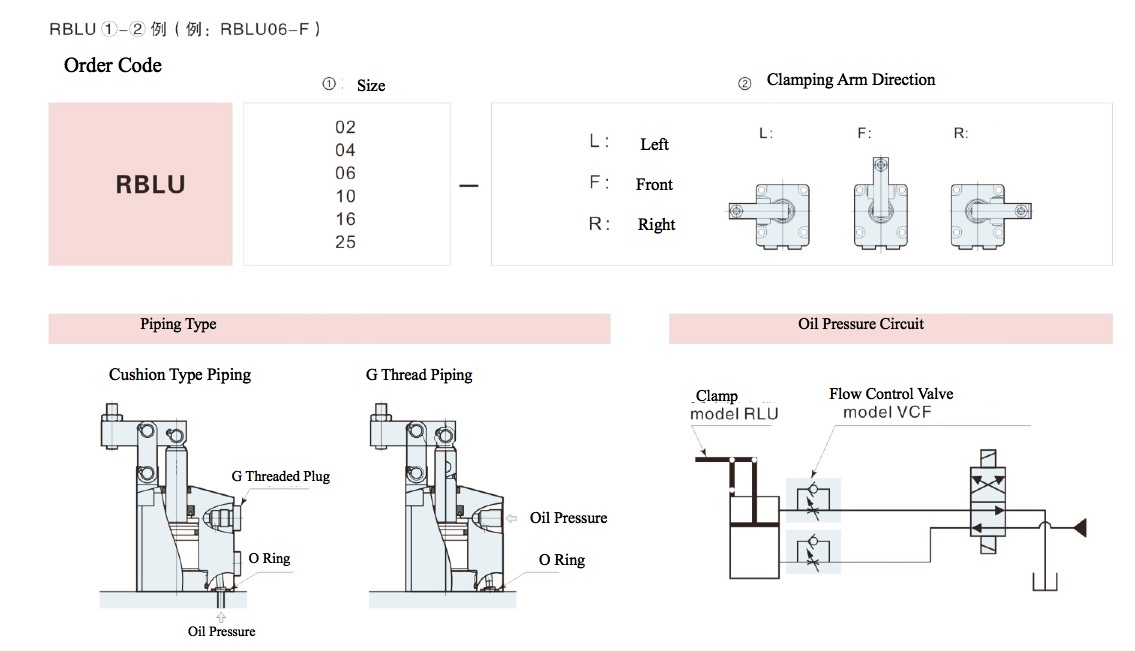

    3.3 clamping arm directions

    4.2 type piping methods

    5.customized products are available by customer's requirements


    ModelRBTLU02RBTLU04RBTLU06RBTLU10RBTLU16RBTLU25
    Cylinder Force (Under oil pressure 7Mpa) (kN)3.45.06.710.617.226.9
    Clamping Force (kN)2.63.54.47.312.118.2
    Clamping arm Length (mm)36.5425056.569.587.5
    Bore of cylinder (mm)253035445670
    Dia. of Piston Rod (mm)1214141622.428
    Piston Area Clamping (cm2)4.97.19.615.224.638.5
    Total stroke (mm)20.523.52629.53645
    Clamping stroke (mm)17.520.52326.53342
    Stroke Clear333333
    Max Flow Rate (L/M)1.01.62.64.79.518.9
    Cylinder CapacityClamp (cm3)10.016.725.044.888.6173.3
    Unclamp (cm3)7.713.021.038.974.5145.5
    Weight (kg)1.01.41.93.25.39.7
