    High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface

    Ask Lasest Price
    Brand Name : jiayan
    Model Number : CHTB
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 pcs per day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface


    Hydraulic Push Pull Cylinder Compact Structure Carbon Steel Material Specially Treated Internal Surface


    FEATURES


    1.Compact construction for space saving. Ideal for application in a restricted space.

    2.Standardized specifications. Direct installation without need of any further accessories for saving cost.
    3.The cylinder barrel is made of structural carbon steel. Internal surface is specially treated. Smoothness and long service life.

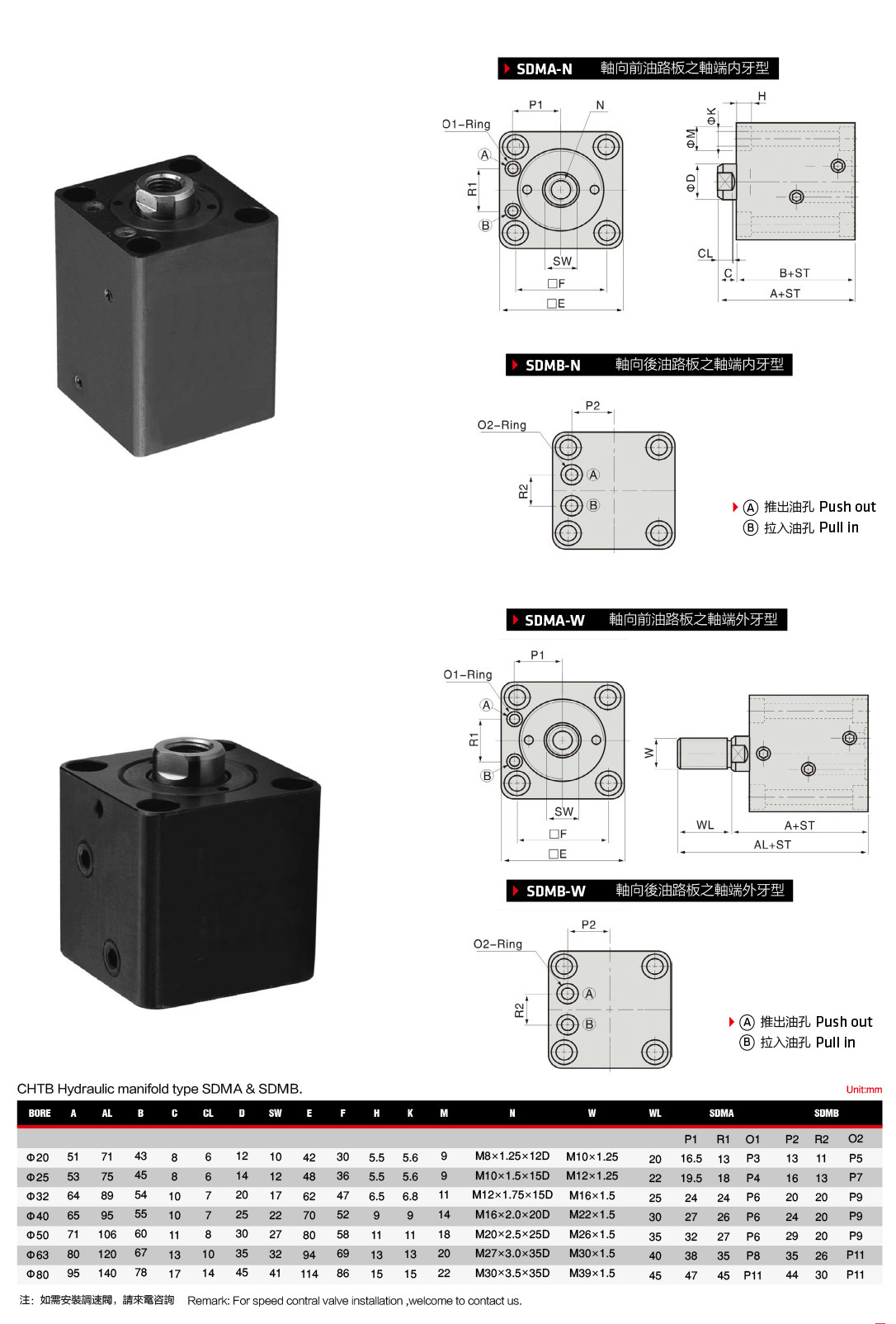

    4.No pipe for Axial and side manifold type , which make the cylinder appearance looks better.
    5. Max. operating pressure: 140 kgf/cm2
    Min. operating pressure: 5 kgf/cm2
    6. Acting Type : Double acting


    NOTE

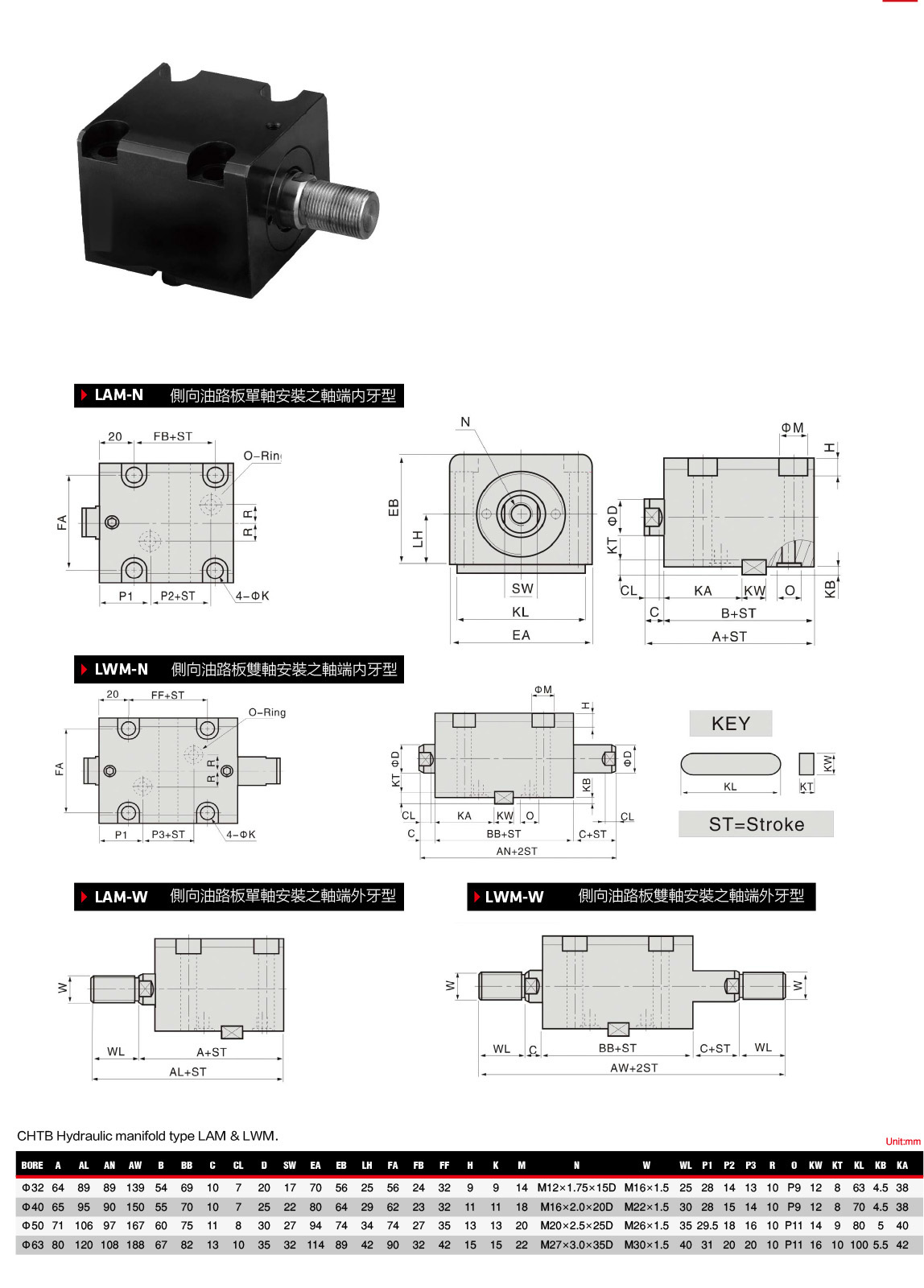

    You are welcome to order the special strokes under request. CHTB-LAM and CHTB-LWM type,the stroke is 10mm and without keyway and flat key
