    21Mpa Round Heavy Duty Hydraulic Cylinder High Clamping Force 1 Year Warranty

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : CHRO
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 300 sets per week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    21Mpa Round Heavy Duty Hydraulic Cylinder High Clamping Force 1 Year Warranty


    21 mpa Round Hydraulic Cylinder Big Heavy Duty Oil Cylinder High Clamping Force


    Heavy Duty Hydraulic Cylinder Applications:


    1. Engineering machine machinery
    2. Overweight transportation machinery
    3. Mining machinery
    4. Construction machinery, agricultural machinery
    6. Metallurgical machinery
    7. Light industrial machinery
    8. Automotive industry
    9. intelligent machinery

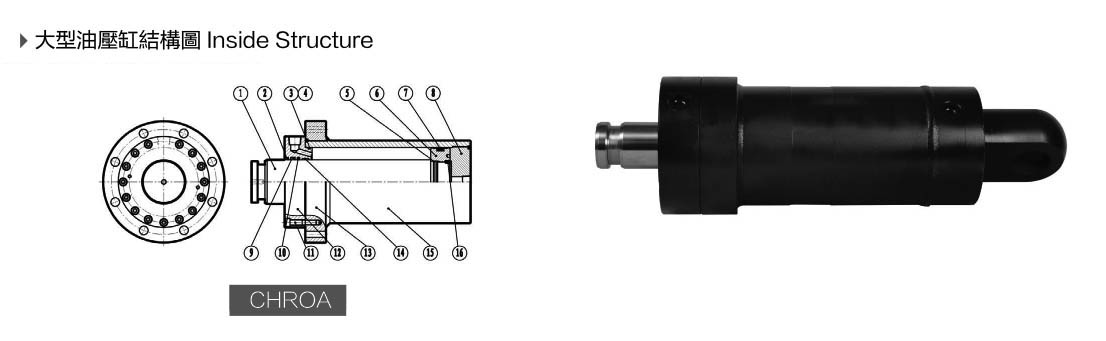

    MOPart nameQTYNOPart nameQTYNOPart nameQTY
    1Piston rod17

    Piston Seal

    113

    Front flange

    1


    2

    Dustproof seal

    18

    End cover

    114

    Guidance tape

    1
    3

    O Gasket

    19

    Oil seal for shaft

    115

    Cylinder tube

    1
    4

    O Gasket support ring

    110

    Rod ladder seal

    116

    Lock screw

    1
    5

    O Gasket

    111

    Socket Head cup screw

    1517
    6

    Piston

    112

    Rod Cover

    118

    Specification:


    Bores of Cylinder

    Φ125


    Φ150


    Φ180


    Φ200


    Φ225


    Φ250Φ280Φ300
    Power FluidFiltered Oil
    Material of cylinder bareelCarbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5
    range of pressure(mpa)

    1-21MPA(10-21kgCM2)

    speed (mm/sec)

    8~500(mm/sec)

    temperature(°C )

    -30~+100 (°C)

    Length of standard piston(PM)6060707070707090

    Piston length when the stroke is between 1501-2500 mm

    120120140140140140140150

    Customized stroke is 2501-4000mm

    200200200200200200200

    Ordering Code

    CHROA 125 / 60 * 100 Y + DM

    1 2 3 4 5 6


    1Series

    2Bore of Cylinder

    Φ125, Φ150, Φ180, Φ200, Φ225, Φ250, Φ280, Φ300

    3Rod

    Standard Φ60 Φ80 Φ100 Φ125 Φ140 Φ160 Φ180 Φ200

    Max Φ80 Φ100 Φ120 Φ140 Φ160 Φ200 Φ220 Φ250

    4Stroke

    Steel barrel(Φ125-Φ300) Max:4m

    5Cylinder Body Accessories
    6DM

    Blank: Standard DM: DM type


    Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.
