    High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

    Ask Lasest Price
    Brand Name : Jiayan
    Model Number : CGO
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union ,PayPal
    Supply Ability : 300 sets per Week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder


    21 mpa Tie-rod Hydraulic Cylinder High Pressure Heavy Duty Oil Cylinder for Large Machinery


    Feature:


    1. Adopt high performance oil seal to prevent leakage , long life service.

    2. Cylinder cover Carbon steel , chrome-plated piston rod , strong and durable ctructure.

    3. Multiple mounting types , which can be customized by clients' requirements.

    4. Cylinder Body: Carbon steel or stainless steel

    5. High Clamping force

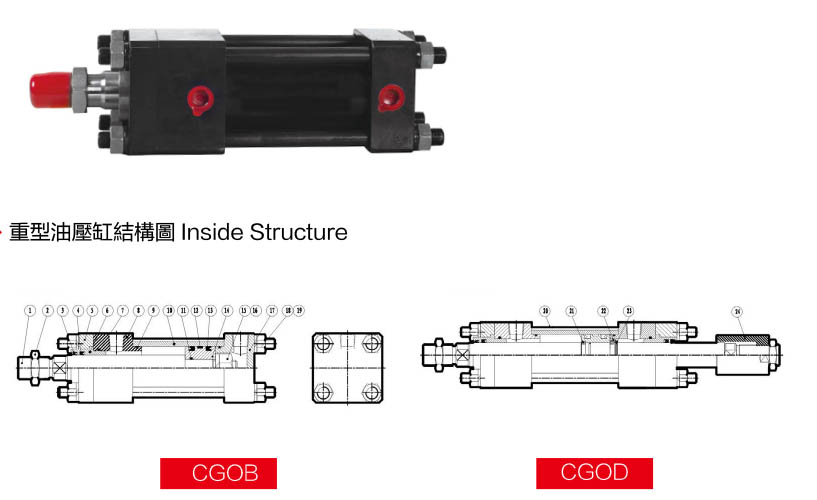

    MOPart nameQTYNOPart nameQTYNOPart nameQTY
    1Piston rod110Cylinder tube119Adjustable nut

    1


    2Locking nut111Cushion collar120,21O Gasket2
    3Dustproof seal112O Gasket122Hexagon nut1
    4Oil seal for shaft113Wearing ring123

    Adjustable lead screw1

    1
    5Gland114Piston seal224Pulled rod4
    6Guide sleeve115Piston125Half snap ring2
    7O Gasket116End cover126Baffle ring

    1

    8Rod cover117Nut827Rod baffle ring1
    9O Gasket218Spring washer828Adjustable nut1

    Specification:


    Bores of Cylinder

    Φ40


    Φ50


    Φ63


    Φ80


    Φ100


    Φ125
    Power FluidFiltered Oil
    Material of cylinder bareelCarbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5
    range of pressure(mpa)0.3-7.0 MPA(3-70kg/Cm2)
    speed (mm/sec)8~300(mm/sec)
    temperature(°C )-10 ~ + 60 (°C )
    Cushion stroke)mm252525253030
    Length of standard piston(PM)303236405959
    Piston length when the stroke is between 1501-2500 mm60656580120120

    Ordering Code :

    CGOB D - 63 / 35 * 100 LB + Y

    1 . 2 . 3 . 4 5 6 . 7


    1Series
    2Flxed Cushioning TypeBlank: No cushion D: cushions on both ends
    F: cushion on head cover B: cushion on end cover
    3Bore of Cylinder

    Φ40, Φ50, Φ63, Φ80, Φ100, Φ125, Φ140, Φ150, Φ160

    4Rod


    5Stroke

    Steel barrel(Φ30-Φ125) Max:4m

    Iron barrel(Φ40-Φ100) Max:2.8m

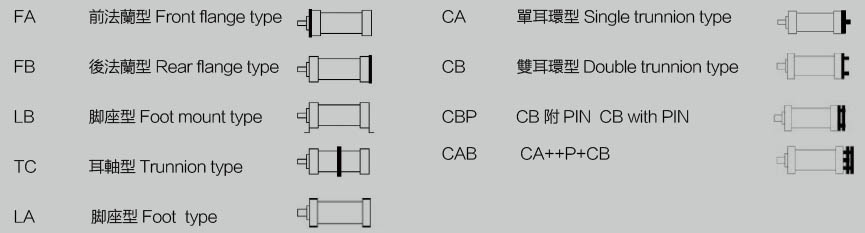

    6Cylinder Body Accessories
    7Rod Accessories

    Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.

    Pls contact us your requested cylinders
