Hydraulic Rotary Joint Manifold distributor for Rotary Workbench Reliable Structure
Product Instruction:
According to the requirements of four-axis fixtures from domestic and overseas machining customers, we designed several four-axis rotary joints for customers. Pls contact us for more technique details before use our our products.
Features:
1.Low starting torque
The special seal with less resistance is adopted to control the
sliding resistance to the minimum and realize the low torque when
starting.
2.Excellent sealing performance and durability
After super finishing on sealing sliding surface is carried out and
hard chrome plated , the excellent sealing performance and
durability will be formed.
The hydraulic rotary joint can effectively solve the problem of oil
supply from the hydraulic hose and the fixed pipe to the rotary
table of the machining center.

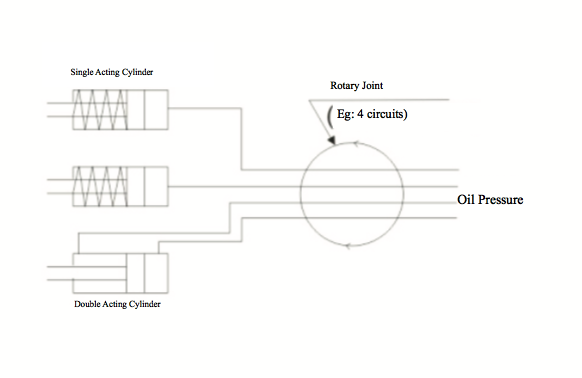

For example, when choosing the 4 circuit type, it can be used to
control 4 single acting hydraulic cylinders or double acting
hydraulic cylinders respectively.
Model | MD-255 | MD-320 | MD-400 |
Circuit No. | 2 | 4 | 6 |
Fluid | Hydraulic Oil | ||
Max Operation Pressure (Mpa) | 25 | ||
revolution | |||
Work Temperature | 0-70 | ||
Piping port Size | Rp 1/8 |
![]() |
