Brand Name : | Jiayan |
Model Number : | RSB |
Certification : | ISO9001:2008 |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union,PayPal |
Supply Ability : | 500 sets per week |
Delivery Time : | 7 days |
Air Powered Swing Clamp Block Version With Sensor Switch Compact Size High Clamping Force Clamp
Features:
1.Optimized design, compact structure, light weight, long life and
high clamping force make it a perfect fixture.
2.This product can be equipped with sensors

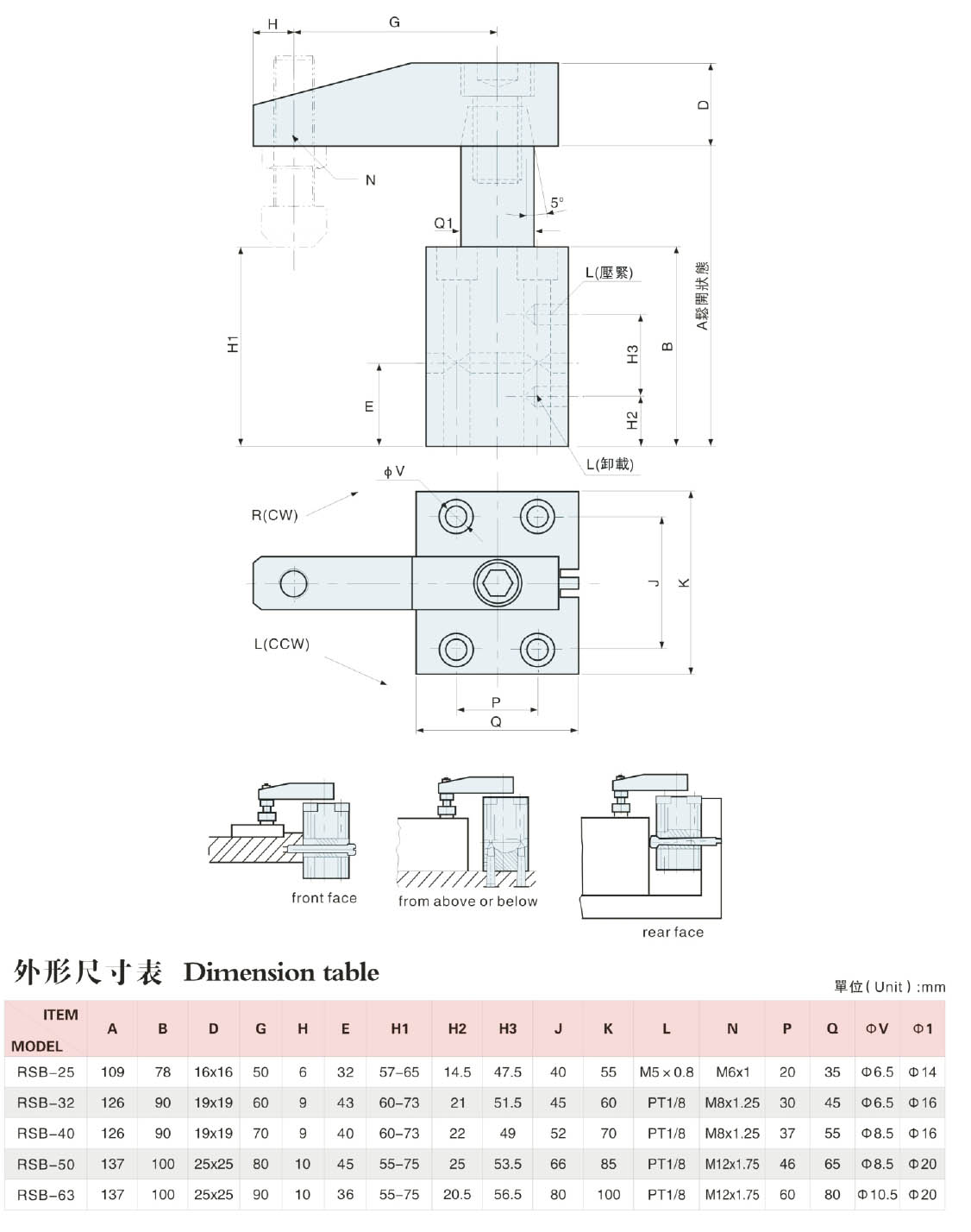

3.The top and bottom and side mounting can be selected according to
customer's requirements.
4.When the length of the clamping arm needs to be increased ,
please do not exceed 1.5 times the original length.
Specification
Bore of Cylinder (mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 |
Diameter of Pison | Φ14 | Φ16 | Φ16 | Φ20 | Φ20 |
Swing stroke (mm) | 13 | 16 | 15 | 17 | 15 |
Clamping stroke | 14 | 15 | |||
Pressure area pull/push cm² | 3.37/4.9 | 6.03/8.03 | 10.56/12.56 | 16.48/19.62 | 28.01/31.15 |
Theoretical Clamping 5kg/ cm² | 16kgs | 30kgs | 50kgs | 80kgs | 140kgs |
Fluid | Filtered air | ||||
Working Temperature | -10~+60°C | ||||
Max operation pressure | 10kg/cm² | ||||
Range of pressure (kg/ cm²) | 4-7kg/cm² | ||||
Rotating direction | clockwise or anti clockwise | ||||
Rotating angle | Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°) | ||||
Acting type | Double acting |
Ordering Code
RSB-- L 40°x 90° S
① ② ③ ④ ⑤
① | Series | RSB |
② | Rotating direction | clockwise or anti clockwise |
③ | Bore of cylinder | Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm |
④ | Standard angle 90° | Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°) |
⑤ | Sensor | S1 :1pc,S2:2pcs |
![]() |
