High Pressure Hydraulic Swing Clamp HPS Max Clamping Force 2880kg Max Stroke 27 World Class Oil Seal Three Mounting type
FEATURES
1. This series of swing clamp cylinder is ideal for workpiece
clamping which requires a sufficient space for convenient workpiece
loading and unloading and high pressure clamping.
2. It provides swing motion and vertical holds down motion.
3. Please don’t clamp workpiece during the swing motion
4. The swing clamp cylinder employs Germany oil seal and imported
parts.
5. The inside surface of cylinder barrel is specially
treated,featuring maximum smoothness, high performance and long
service life.
6. Do not exceed oil feeding speed to avoid too high swing speed.
7. ln case improper swing speed occurs,it is suggested to equip
with an additional oil flow control valve to reduce oil feeding
speed.
Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 70 kgf/cm2
Single acting and double acting
NOTE
For customized clamp arm, please don't exceed 1.5 times of the
original length and weight.

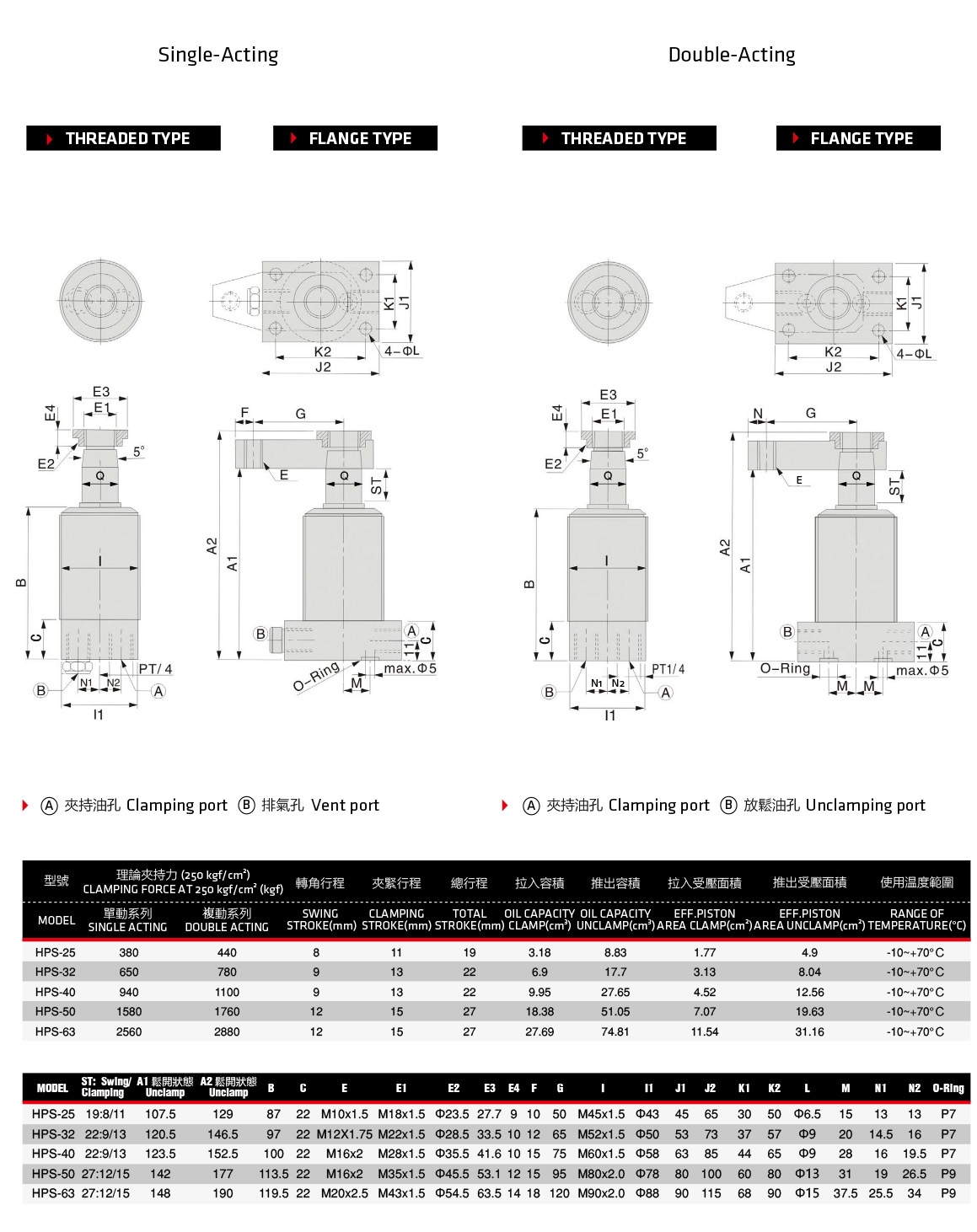

ORDERING INDICATION HPS – 25 S A R×90 – P
HPS | Series | HPS |
25 | Bore of cylinder | Φ25,Φ32,Φ40,Φ50,Φ63 |
S | Acting type | S: Single acting D: Double acting |
A | Mounting type | A Threaded type B Line type |
R | Rotating direction | Turn right R or turn left L |
90 | Rotating angle | Standard angle 90°(±2°) Optional angle 30°(±2°),45°(±2°),60°(±2°) |
P | Precision position | Add locating pin design to improve the repeat precision of rotation angle |
![]() |
