    Piston Pneumatic Swing Clamp , Swing Clamp Assembly Black Oxide Finishing


    Pneumatic Swing Clamp Aluminium Alloy Cylinder Black Oxide Finish On Surface Machining Center Tool


    Cylinder Features


    1.The product is ideal for mass production on a special purpose machine and jig on machining center.

    It will greatly upgrade production efficiency.
    2.When the air cylinder actuate, and the piston moves downward, the clamping arm will swing to a rated angle! Then it lowers until the workpiece is clamped securely.
    3.To avoid too fast motion a flow control valve is suggested to connect to the air inlet ports (A, B) on the swing clamp cylinder. Do not clamp workpiece while the clamp is swinging to avoid damaging on the cylinder barrel and internal parts.
    4.When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the original length.
    5.The cylinder body is manufactured from aluminum alloy. Surface is hard membrane treated for maximum smoothness on inside surface and long service life.
    6.Max. operating pressure: 7 kgf/cm2

    Min.operating pressure: 4 kgf/cm2
    7.Double acting


    NOTE

    The acting speed of clamping-unclamping should be slowed down.
    For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

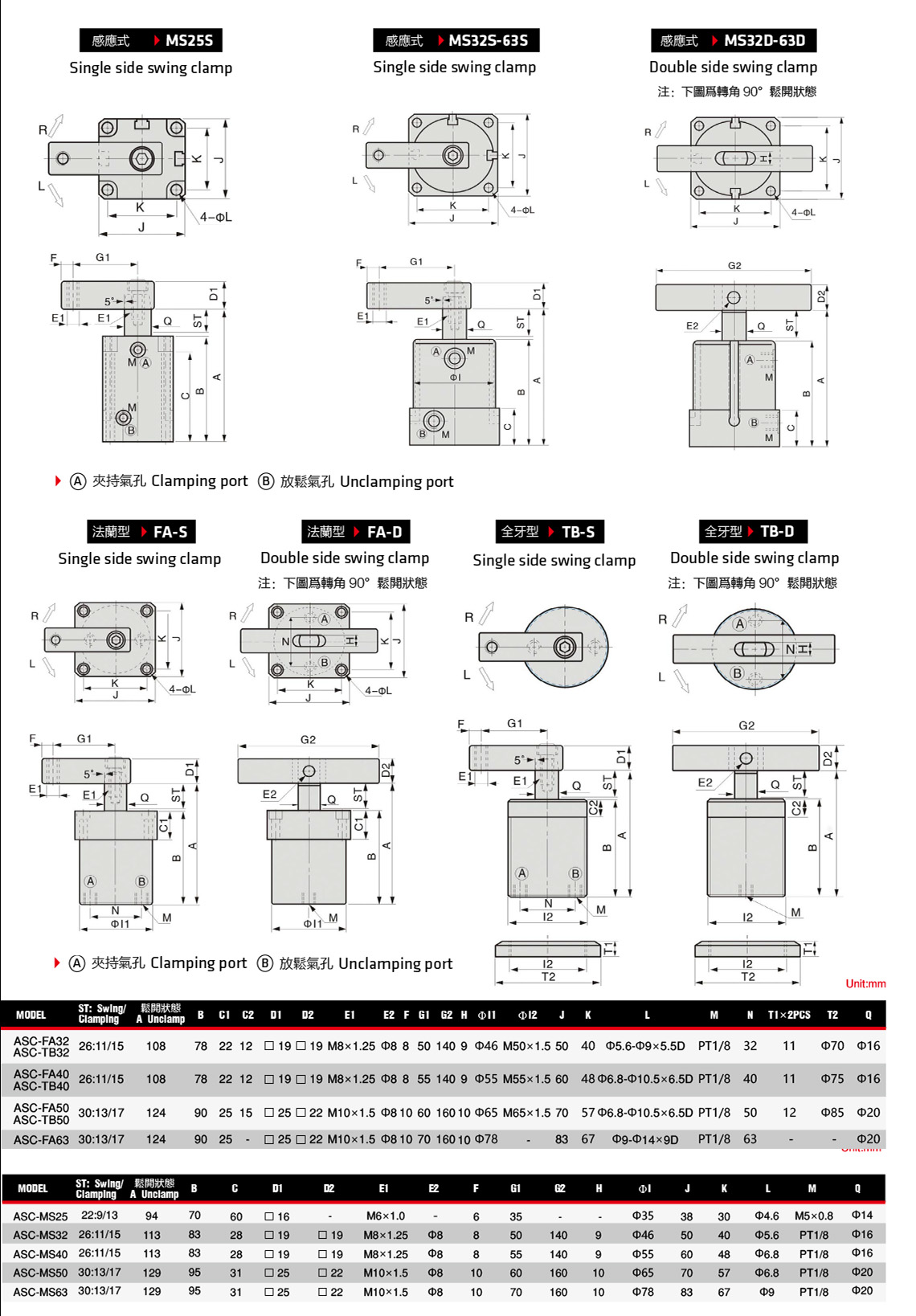

    ORDERING CODE
    ASC – MF 25 S R×90 – E– P


    Series ASC

    Type Blank: Line type ; MF: Manifold with flow control ; MS: Magnetic type ; FA: Flange type ; TB: Threaded body

    Cylinder inside diameter : Φ 25; Φ 32; Φ 40 ; Φ 50 ; Φ 63

    Clamping arm type: S: Single side arm D: Double side arm

    Rotating direction R: Turn right L: Turn left N:0° No swing

    Rotating angle :Stardard angle 90°(±2°) ; Optional angle 0°, 45°(±2°), 60°(±2°)

    Stroke extension

    Precision position :Add locating pin design,to improve the repeat precision of rotation angle
